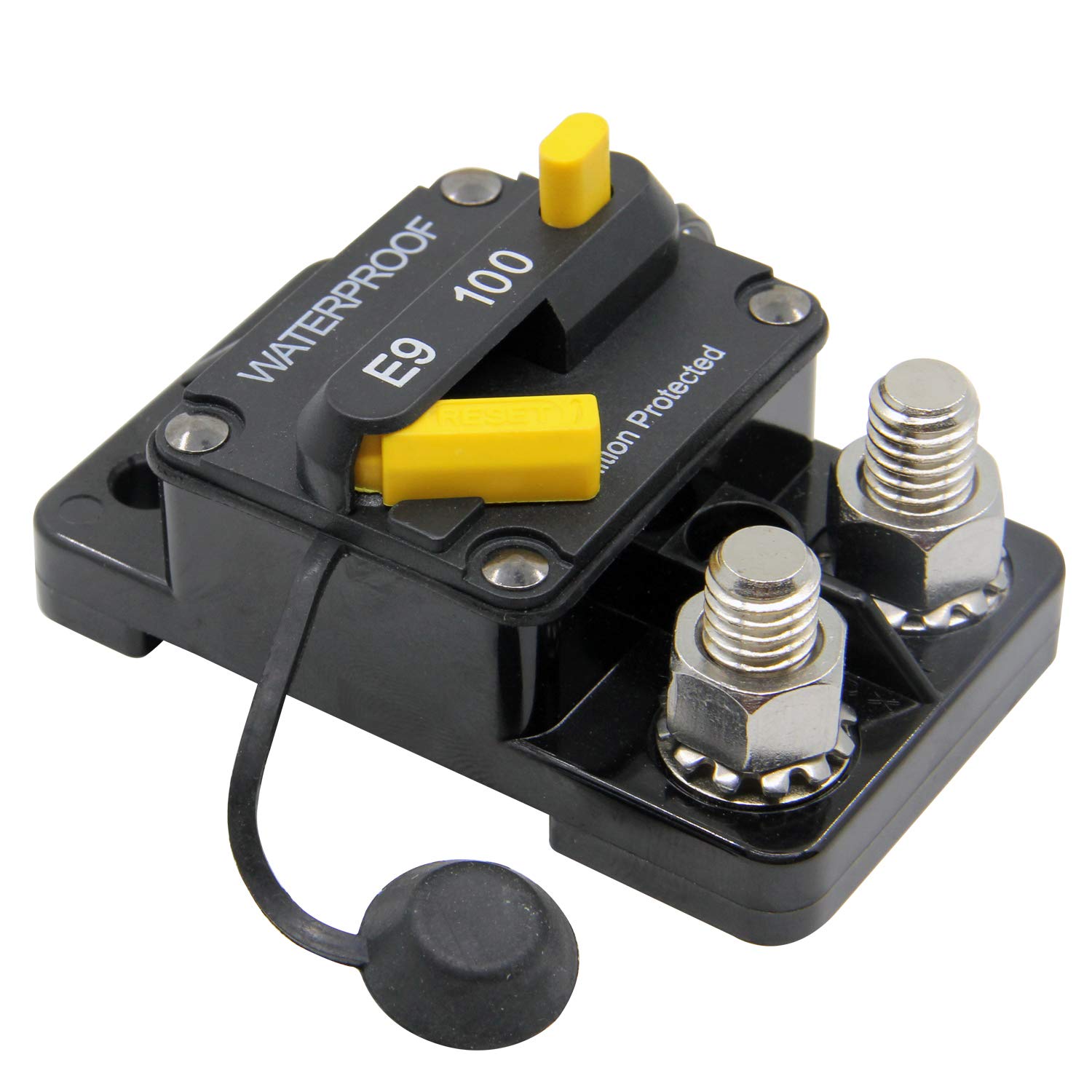

ZOOKOTO 12-48V DC 100A Surface Mount Circuit Breaker Double 3/8" Studs with Manual Reset Waterproof 100Amp
Product details
| Management number | 237398858 | Release Date | 2026/07/10 | List Price | $8.80 | Model Number | 237398858 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product description: Surface Mount Stud size:3/8"-16 Weight:151g Size:80*49*45mm Single pole,thermal device Rating:48VDC Interrupt Capacity: 25-150A:5KA@16Vdc,3KA@32Vdc,2KA@72Vdc,180-250A:2.5KA@14Vdc,2KA@26Vdc Endurance for:500 cycles,200% 14Vdc Operating temperature: -32C to 82C(-25 Fto 180 F) Storage temperature: -34C to 149C(-30 F to 300F) Torque rating:50in-lb(5.6Nm) max Wire size for: >50-60A#6(13MM); >60A-90A#4(19MM); >90-120A#2(32MM); >120-150A#0(50MM); >150A-200A#00(62MM); >200-300A#0Q0(85MM) Packing list: 1 * 100 Amp Circuit Breaker
- Meet S.A.E. J553,J1625, J1171, UL1500 (Ignition Protected)
- Splash and dust proof at IP67 grade
- Surface Mount,protective stud insulators included
- Red or Yellow (Random Color) Manual Reset button (with switchable),rate up to 72Vdc(100A)
- Housing is thermalplastic UL rated 94V0
| ASIN | B07G42FHV1 |
|---|---|
| Model | 20880802FX100A |
| Voltage | 12 Volts, 48 Volts |
| Brand Name | ZOOKOTO |
| Part Number | 20880802FX100A |
| Manufacturer | ZOOKOTO |
| Mounting Type | Surface Mount |
| Current Rating | 100 Amps |
| Number of Poles | 1 |
| Circuit Breaker Type | Standard |
| Item Dimensions D x W x H | 1.77"D x 3.15"W x 1.77"H |
