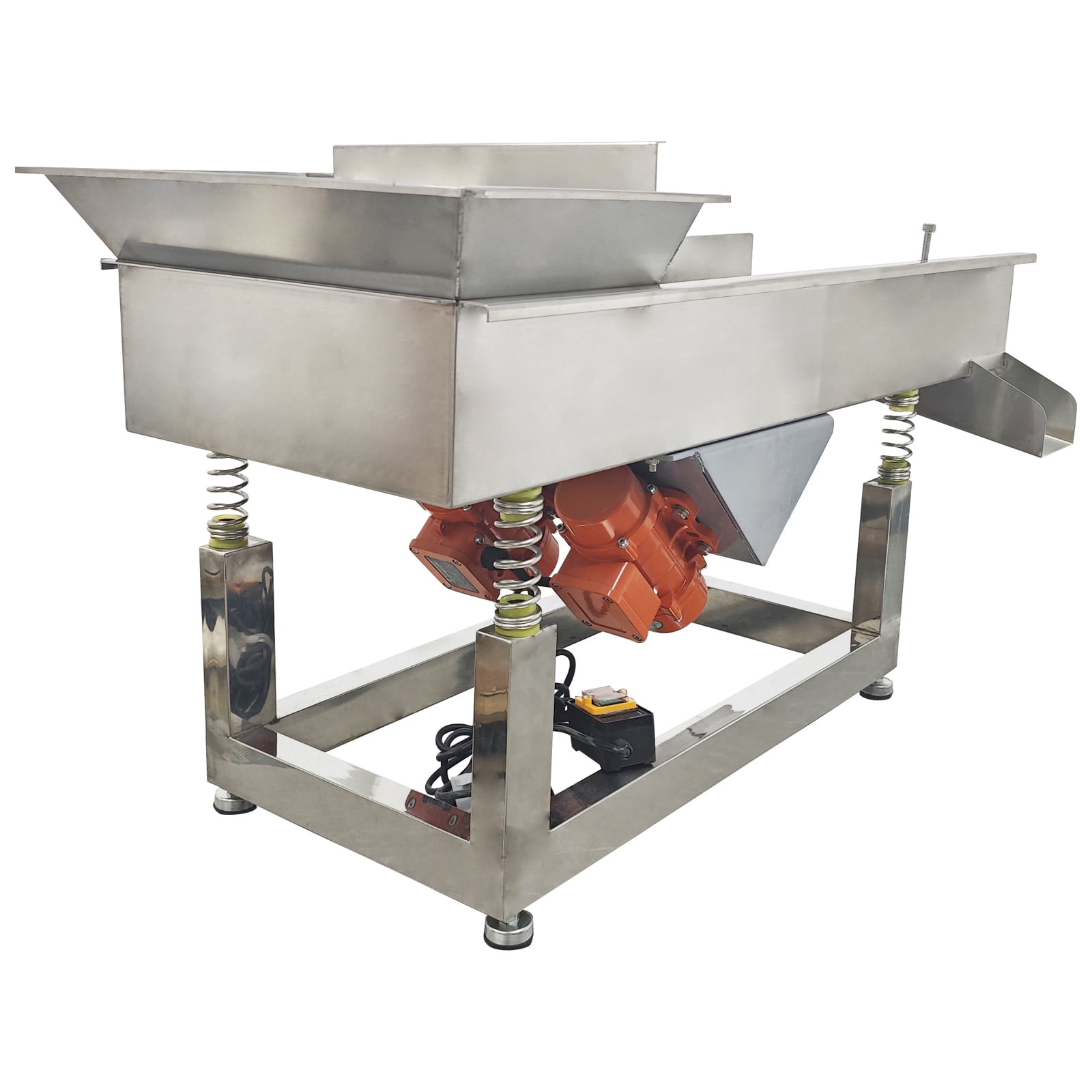

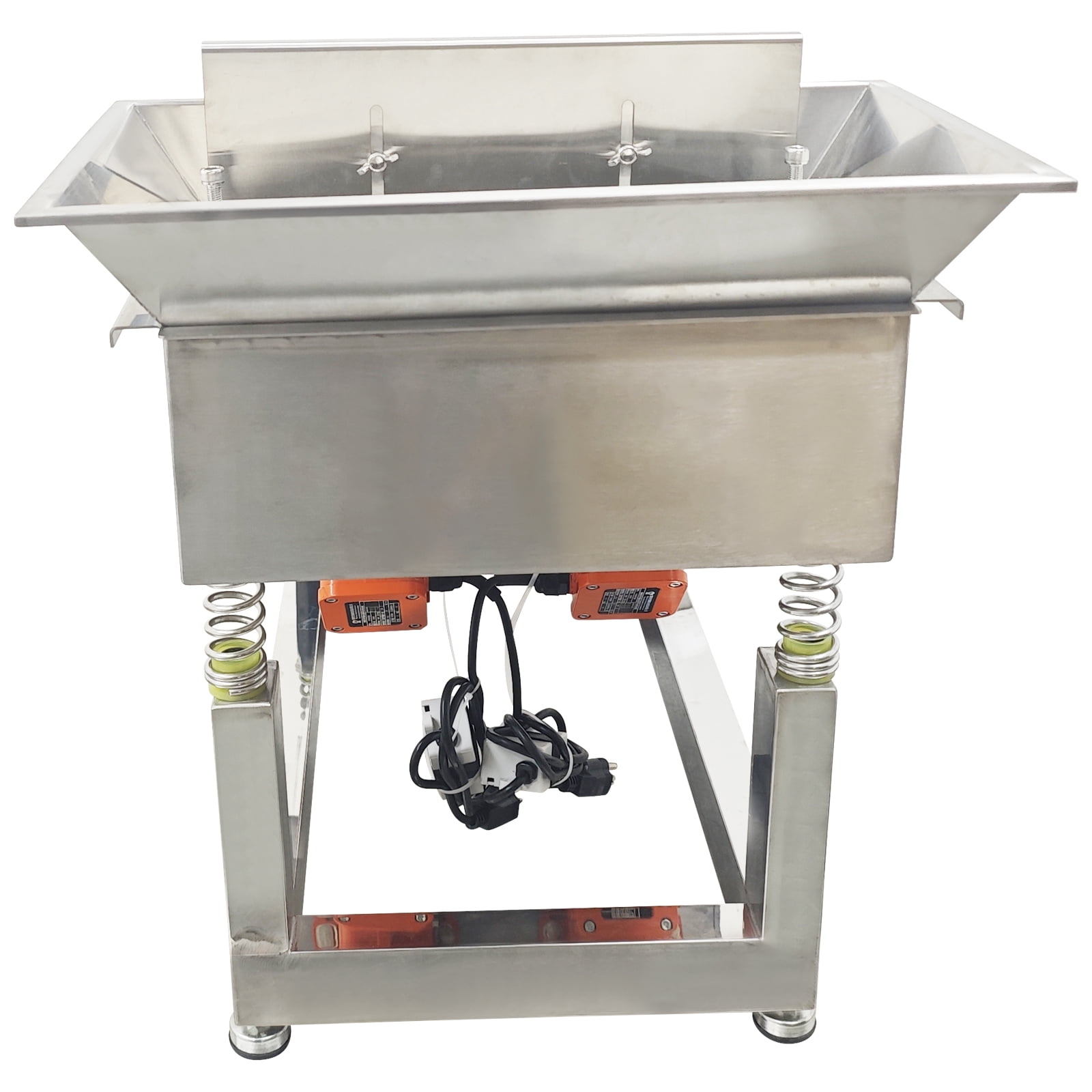

TB610 Full Stainless Steel Linear Vibrating Screen 7mm Round Hole Screen Dual Motor 120W*2

Product Overview: <br>The linear vibrating screen is specially designed for large output. It can accurately screen and classify materials and improve working efficiency. <br>The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials. <br> <br>Product Overview: <br>Material: High quality stainless steel <br>Voltage: 110V <br>Power: 120W*2 <br>Machine size: 52.95*20.67*25.39"（134.5*52.5*64.5cm） <br>Size of feed port: 20.67*12.99"（52.5*33cm） <br>Mesh size: 7mm <br>Mesh shape: Round Hole <br> <br>Working principle: <br>The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper can vibrate in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and is sifted through the screen to complete the screening operation. This machine is composed of a sieve box, a vibration motor and a base plate. The sieve box is composed of a sieve frame, a sieve plate and a lining plate. This sieve machine adopts the high-performance and long-life vibration motor. By adjusting the height of the baffle, the sinking speed of the material can be controlled. The vibration damping system comprises a rubber spring, a clamp, a support base and the like. The base plate consists of a silo and a bottom board. <br> <br>Use Maintenance <br>●Before use, check all parts and accessories to ensure that the installation is correct before power. <br>●The vibrating parts of the machine shall not be connected with or in contact with any object outside the machine while the machine is in operation. <br>●When the material is fed, it should be fed in the direction of the whole width of the screen at the feed inlet to ensure the even distribution of the material on the screen surface. <br>●When the material falls, there should be no big impact, so as to avoid the damage to the scree. <br>●No remaining material shall be found on the screen surface before starting or stopping the machine. <br>●If there is abnormal sound during the operation of the equipment, it should be immediately shut down to check,and then troubleshooting can be conducted. <br>●Removable stainless steel baffle, can be removed and used directly. <br> <br>Linear vibrating screen is widely used in chemical industry, plastics, metallurgy, glass, building materials, fertilizer, ceramics and other industries.we also provide other sizes of screen mesh, if you need, please contact us. <br>Free return service not applicable if the product itself has no quality issues. And We provide one year technical support after it is delivered. <br> <br>Item Number: 270013 <br>110V Stainless Steel Linear Vibrating Screen(7mm)

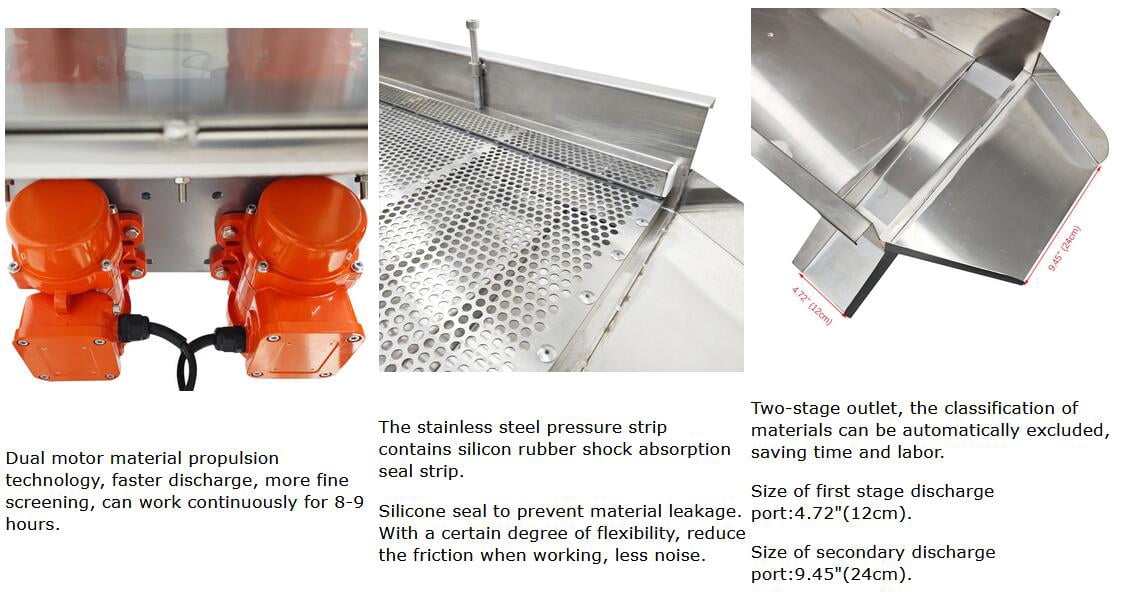

• ‌Dual Motor High-Efficiency Screening: Dual-motor material propulsion enables faster discharge and finer screening, supporting continuous operation for 8–9 hours to boost productivity.
• Durable Stainless Steel Construction: Stainless steel pressure strips with silicone rubber shock absorption reduce friction and noise. A silicone seal prevents material leakage for stable, low-maintenance use.
• Automatic Two-Stage Classification: The dual-outlet design automatically separates materials, with a 4.72" first-stage port and 9.45" secondary port, saving time and labor.

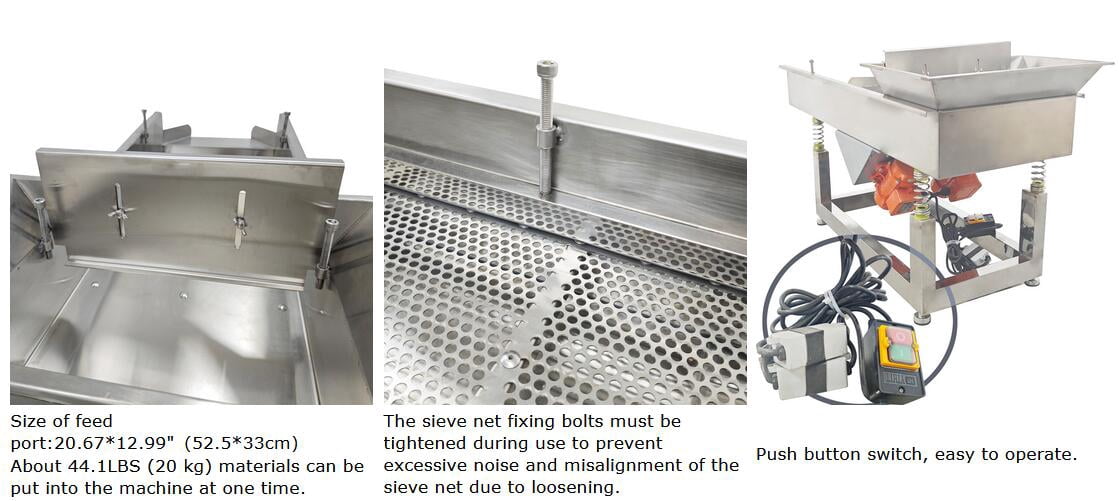

• Large Capacity & Secure Setup: The 20.67"*12.99" feed port accommodates up to 44 lbs (20 kg) of material at once. Sieve net fixing bolts prevent loosening, noise, and misalignment.
• Versatile & User-Friendly: Push-button switch enables simple operation. We can custom screen sizes are available for chemicals, plastics, metallurgy, and more.
