Portable Wind Turbine Power Generator 12V 100W Vertical12 Wind Turbine Generator Portable Windmill Generator Home Use with Controller

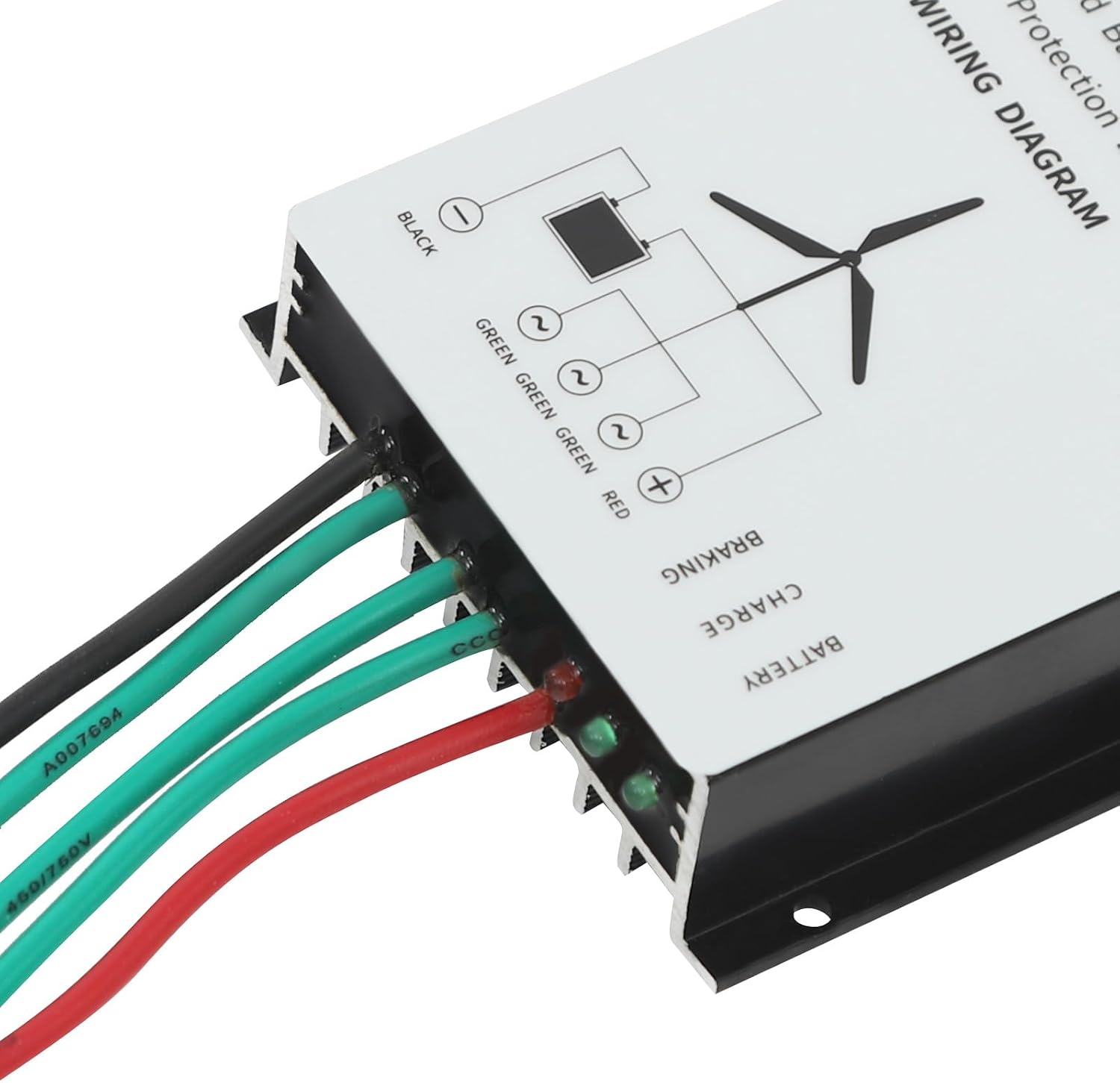

Notes1. Please check the size carefully before ordering.2. Please be sure to use it with a gel battery or a lead-acid battery. The lithium batteries are not suitable for the product.3. The mounting height depends on the installation environment. Please make sure that there is no obstruction around to ensure that the product receives wind energy in 360°.4. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and please connect the red and black wires to the positive and negative poles of the battery respectively.SpecificationsColor: WhiteMaterial: Nylon Fiber, Aluminum, Copper, Stainless SteelProcess: Plastic SprayingGenerator Type: Copper Wire Permanent Magnet Levitation GeneratorBraking Type: Electro-mechanical BrakeController IP Protection Level: IP67Power Source: Wind PoweredRated Battery Voltage: 12V/24VFan Blades: 3Rated Power: 100WRated Voltage: 12VWheel Diameter: 53cm/20.87inRated Wind Speed: 13m/s/29.08mphSafe Wind Speed: 35m/s/78.29mphStart-up Wind Speed: 2.5m/s/5.59mphWorking Temperature: -40-80℃/-40-176℉Noise: 30dBFlange: DN20Flange Outer Diameter: 10.5cm/4.13inFlange Inner Diameter: 7.5cm/2.95inFlange Hole Quantity: 4Flange Hole Diameter: 1.4cm/0.55inRod Connection Diameter: 5.6-6.2cm/2.2-2.44inAssembly Required: YesProduct Size(D*H): 53*75cm/20.87*29.53inPackage Size: 86*38*20cm/33.86*14.96*7.87inGross Weight: 10kg/22.05lbsNet Weight: 8.6kg/18.96lbsPackage Included1* Vertical Wind Turbine Generator1* ControllerOther Needed Accessories

• POWERFUL PERFORMANCE: The 100W wind turbine utilizes advanced permanent magnetic levitation technology to reduce friction loss and increase power generation efficiency. With 5.59mph low starting wind speed and powerful copper wire permanent magnetic levitation motor allow this product to efficiently utilize wind energy to generate electricity. An intelligent microprocessor controller to effectively regulate the current and voltage
• HIGH-QUALITY BLADES: Wind turbine blade material is synthetically injection molded with high-strength premium nylon fiber material. And the blade is designed with aerodynamics to make the rotor run smoothly, reliably and quietly. The permanent magnet levitation generator is characterized by low loss, high power, and low torque during start-up, ensuring high power conversion efficiency and smooth and reliable operation.
• PARAMETERS: Fan Blades: 3, Rated Power: 100W, Rated Voltage: 12V, Wheel Diameter: 53cm/20.87in, Rated Wind Speed: 13m/s/29.08mph, Safe Wind Speed: 35m/s/78.29mph, Start-up Wind Speed: 2.5m/s/5.59mph, Flange: DN20, Flange Outer Diameter: 10.5cm/4.13in, Flange Inner Diameter: 7.5cm/2.95in,Flange Hole Diameter: 1.4cm/0.55in,Rod Connection Diameter: 5.6-6.2cm/2.2-2.44in
• QUIETLY AND RELIABLE: With dual bearings, the fan movement is more stable and quite. Low vibration and reduces the noise(30dB). In addition, our 12v wind turbine generator equipped with IP67 protection level to ensure safe and stable operation under adverse weather conditions. The external electromagnetic braking mechanism provides additional safety. When the product reaches the braking voltage (14.4V), the speed will be reduced, until the voltage drops to about 12V and then speed up, and so on and so forth to ensure stable and safe operation
• MULTIFUNCTIONAL USE: Human-friendly design wind turbine, easy to install and maintain, high wind power utilization. The wind generator's unique vertical structure adapts to a wide range of environmental conditions and can easily capture the breeze to generate electricity, providing a clean and reliable energy source for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplem
